Standard - Integrated Emitter Column - 75µm ID x 8cm 1.6µm 100Å Micromics C18 P/N CL1A-JBST

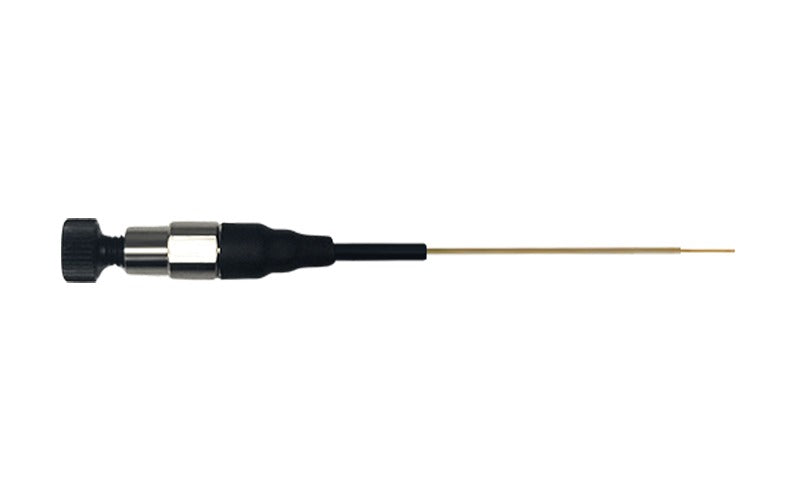

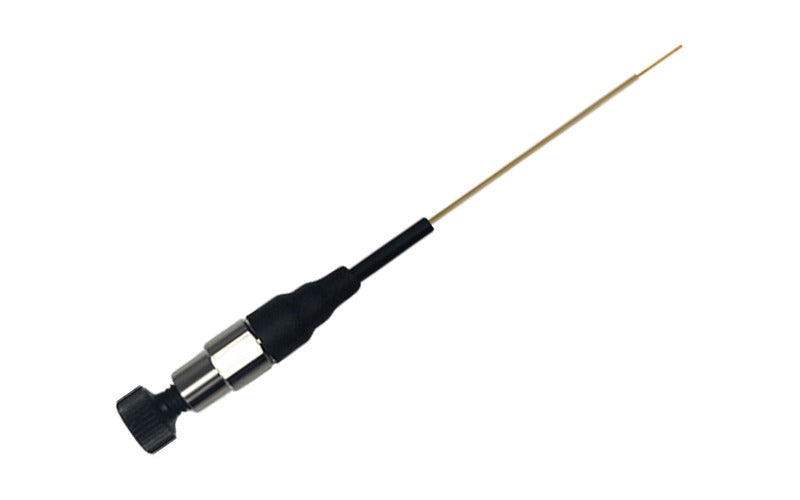

MicrOmics CL1A-JBST Column

The 75 µm × 8 cm column is designed for nanoLC-MS workflows where sensitivity and throughput are both important. Its narrow internal diameter supports efficient low-flow electrospray ionization, while the shorter 8 cm bed length enables faster separations and lower backpressure than longer column formats. This column is a strong choice for routine proteomics, metabolomics, and high-throughput LC-MS applications where efficient analysis time is a priority.

Performance Overview

• Sensitivity: ⭐⭐⭐ High
• Resolution: ⭐⭐ Moderate
• Throughput: ⭐⭐⭐⭐ Very High
• Typical Use Case: High throughput applications

Technical Specifications

• Inner Diameter: 75 µm
• Length: 8 cm
• Stationary Phase: C18, 1.6 µm, 100 Å
• pH Range: 2–9
• Max Temperature: 70 °C
• Max Pressure: ≤ 1500 bar
• Emitter Option: Integrated
• Inlet Fitting: NanoViper-compatible (1/16" female)
