30/50 µm ID Column for Low Input Proteomics

Sensitive nanoLC–MS requires balancing electrospray ionization efficiency with chromatographic separation [1–3]. While linear velocity governs separation efficiency, volumetric flow rate dictates ESI signal intensity [1–3]. Reducing column ID enables lower flow rates at matched linear velocity, requiring just 16% (30 μm) and 44.4% (50 μm) of the flow used by a 75 μm column.

However, narrower columns bring potential trade-offs in packing consistency and operational lifetime. Sensitivity gains must be paired with separation quality and run-to-run reproducibility. Below, we explore the physics of reduced column ID and present MicrOmics performance data demonstrating 1,158-run retention-time stability on our 30 μm configuration [4].

1. Smaller ID columns enhance signal intensity for low-input samples

Why Lower Flow Rate Matters

Lower-flow electrospray ionization (ESI) significantly enhances ion utilization efficiency, making it critical for sample-limited applications [1]. Here, ion utilization efficiency refers to the ratio of gas-phase ions reaching the mass spectrometer inlet relative to the total amount of analyte consumed, a metric distinct from simple peak height or raw signal intensity [1].

Mechanistically, we hypothesize that reducing the volumetric flow rate alters the physical dynamics of the electrospray plume:

• Smaller Initial Droplets: At lower flow rates, the liquid filament emerging from the Taylor cone may break into smaller primary droplets.
• Accelerated Desolvation Kinetics: Because droplet surface area scales inversely with radius, smaller droplets may require fewer solvent evaporation and Rayleigh fission cycles to produce gas-phase ions.
• Higher Surface Charge Density: Smaller initial droplets possess a higher charge-to-volume ratio, potentially facilitating faster ion evaporation (IEM) or charge residue (CRM) processes before droplets are swept away or deposited on source hardware.
• Reduced Space-Charge & Plume Expansion: Lower overall liquid volume may reduce space-charge repulsion within the spray plume, potentially maintaining a tighter ion beam directed toward the sampling orifice.

While overall sensitivity gains depend on emitter tip diameter, solvent surface tension, analyte ionization energy, and source temperatures, we hypothesize that sub-micrometer and externally etched emitters can exhibit substantially improved ion utilization efficiency as flow rates decrease below 100 nL/min. Reschke and Timperman observed that ion utilization efficiency decreased as flow rate increased, with the highest utilization occurring at their lowest tested flow rate of 10 nL/min [1].

Figure 1. Electrospray ion utilization efficiency as a function of volumetric flow rate. Lower volumetric flow rates dramatically increase ESI ion utilization efficiency [1].

Volumetric Flow Rate vs. Linear Velocity

Achieving these lower flow rates without sacrificing chromatographic resolution requires adjusting column dimensions rather than simply slowing down the pump.

Volumetric flow rate (Q) dictates ESI signal intensity, whereas interstitial linear velocity (u) governs chromatographic separation efficiency [1–3]. The fundamental relationship between linear velocity, flow rate, column inner diameter (d), and interparticle porosity (ε_e) is given by [5]:

u = Q/(εₑA) = 4Q/(εₑπd²)

Reducing the column inner diameter allows the system to operate at substantially lower ESI flow rates while preserving the exact same linear velocity (u), and thus maintaining optimal chromatographic peak capacity [1–3].

Figure 2. Linear velocity (u) and chromatographic column efficiency. Representative Van Deemter plot showing column plate height (H) as a function of interstitial linear velocity. The optimum linear velocity (u_opt) corresponds to the minimum plate height (H_min), yielding maximum chromatographic efficiency and peak capacity. Operating below u_opt causes longitudinal diffusion (B-term) to dominate, leading to severe peak broadening, while operating above u_opt increases mass-transfer resistance (C-term) [2, 3].

2. Literature Evidence: Reduced Column ID Boosts Proteome Coverage at Low Sample Inputs

Sensitivity and Proteomic Depth with Sub-Nanogram Samples

Ultra-low-flow LC–MS enables deep proteome coverage from sub-nanogram samples by maximizing electrospray ionization efficiency prior to mass analysis [10]. In a published low-input workflow combining efficient sample preparation, ultra-low-flow chromatography, and wide-window acquisition on an Orbitrap Exploris 480, researchers achieved an average of 3,524 protein groups (including match-between-runs) from just 0.2 ng HeLa digest aliquots using a 40-minute gradient at ~15 nL/min [10]. Without match-between-runs, the workflow identified ~2,150 proteins from those same 0.2 ng inputs, with a 20-minute gradient incurring only a ~10% reduction in total coverage [10].

Published 50 μm ID comparisons further highlight the fundamental sensitivity scaling of narrower column geometries [7]. A Nature Communications study comparing 50 μm ID columns at 125 nL/min to standard 75 μm ID columns at 250 nL/min reported nearly twice as many identified precursor ions on the 50 μm configuration [7]. Crucially, the 50 μm column yielded equivalent protein identification depth from 125 pg of input as the 75 μm column required from 250 pg, effectively doubling sample utilization efficiency [7].

In that study, both configurations operated at near-equivalent linear velocities (~12.5% higher on the 50 μm column assuming equal porosity) [7]. The authors reported identical chromatographic and proteomic performance between in-house packed and commercially sourced 50 μm capillary columns [7]. These findings establish the universal ESI efficiency gains of narrow-bore geometry [7]; MicrOmics commercializes these exact physical principles into standardized, high-throughput column hardware engineered for long-term operational stability [4].

3. Robustness and Chromatographic Reproducibility During Extended Operation

A recent multi-column nanoLC study provides direct performance data on MicrOmics 30 μm ID ×5 cm integrated-emitter columns operating at ~100 nL/min [4]. A representative base peak chromatogram demonstrates sharp, highly symmetrical peptide elution from a 250 pg HeLa load within a compact 5-minute analysis window, illustrating exceptional separation performance at single-cell-level sample inputs [4].

Figure 3. Low-input separation on a MicrOmics 30 μm ID column. Base peak chromatogram illustrates sharp peptide elution and peak capacity for a 250 pg HeLa load within a 5-minute analysis window [4].

Robustness and Chromatographic Reproducibility During Extended Operation

High sensitivity at low flow rates must be backed by long-term column stability to support large-scale study cohorts. A landmark Nature Communications study evaluated MicrOmics 30 μm ID × 5 cm  columns featuring integrated emitters packed with 1.6 μm C₁₈ stationary phase in an automated multi-column nanoLC–MS platform operating at ∼100 nL/min [4].

The platform demonstrated exceptional retention-time reproducibility across 1,158 continuous analyses (Figure 4), establishing published proof-of-concept for long-term operational robustness in ultra-narrow-bore configurations [4]. Over the full course of the multi-center study, the system successfully processed >4,000 analytical samples [4].

Figure 4. Retention-time stability during extended multi-column operation. Retention times for four representative peptides monitored across 1,158 continuous analyses of mixed-species standards utilizing two alternating MicrOmics 30 μm ID ×5cm integrated-emitter columns (Blue: Column 1; Orange: Column 2) [4].

4. Column configurations and custom options

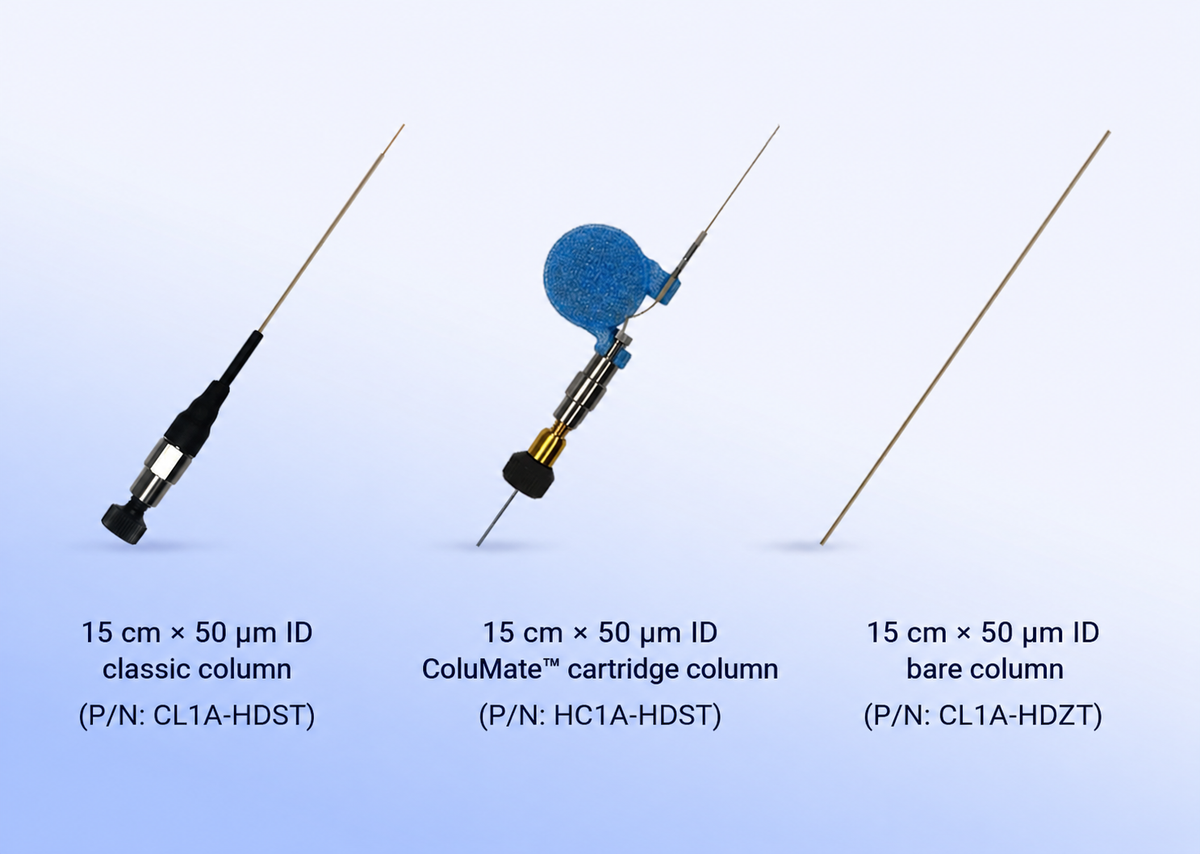

MicrOmics offers 30 and 50 µm ID columns in bare, inlet-fitting and ColuMate™ formats to accommodate different connection and heating arrangements. Choose the format that fits your LC–MS interface and preferred installation method.

References

[1] Reschke and Timperman, A Study of Electrospray Ionization Emitters with Differing Geometries with Respect to Flow Rate and Electrospray Voltage (2011). Related evidence for Figure 1: better ion utilization at lower flow rates for externally etched emitters. Figure 1 artwork is produced by MicrOmics.

[2] Waters, Enabling Significant Improvements for Peptide Mapping with UPLC. Figure 1 and accompanying text: 1500 Da peptide, 1.7 µm particles, reported minimum at 0.33 mm/s. Cite the result; reproduction rights for the figure have not been established.

[3] Walter et al., High Efficiency Narrow-Bore Columns Packed with 1.6 and 2.7 µm Solid Core Particles. Supporting experimental context for the efficiency–velocity relationship discussed with Figure 2.

[4] Wang, Lin, Huang et al., High-throughput label-free single-cell proteomics enabled by multicolumn NanoLC. Nature Communications (2026). Published September 24, 2026. Reference PDF. Figure 2C documents 1,158 continuous analyses across two columns. Methods specify MicrOmics 30 µm ID × 50 mm integrated-emitter columns packed with 1.7 µm, 100 Å C18 particles and an approximately 8 µm emitter opening. Figure 3 in this blog uses the supplied crop of Figure 2A; Figure 4 uses the supplied crop of Figure 2C.

[5] De Luca et al., Novel insights into the dependence of adsorption-desorption kinetics on particle geometry in chiral chromatography. Equations 1–2 define reduced plate height and reduced interstitial velocity. Its chiral separation curve does not establish the optimum for peptide C18 nanoLC.

[6] Figure 2 image credit: Van-Deemter.svg, Wikimedia Commons, Morglin, vectorized and corrected by Matthias M.; public domain, rendered as PNG. The generic illustration is from Wikimedia; the two Waters publications provide supporting LC examples.

[7] Hendriks et al., Nature Communications, DOI 10.1038/s41467-026-77675-x. Attached reference PDF. Relevant passages: Results on column diameter and Figure 1b; Discussion on 125 nL/min elution; Methods under LC setup.

[8] Carr, Wang and Stoll, Perspectives on Recent Advances in the Speed of High Performance Liquid Chromatography. Background on the relationship between efficiency, velocity and practical separation speed.

[9] Optimization of Data-Independent Acquisition Mass Spectrometry for Deep and Highly Sensitive Proteomic Analysis. Section 2.1 and Figure 1: 75 µm column flow comparison; identification gains at lower flow represent overall LC–MS performance.

[10] Truong et al., Data-Dependent Acquisition with Precursor Coisolation Improves Proteome Coverage and Measurement Throughput for Label-Free Single-Cell Proteomics. Angewandte Chemie International Edition 62, e202303415 (2023). Sensitivity context for ultra-low-flow chromatography combined with efficient sample preparation and wide-window acquisition. Reported 3,524 proteins per single-cell-sized digest aliquot with a 40-minute gradient at approximately 15 nL/min; this result describes the complete workflow. Free full text on PMC.
